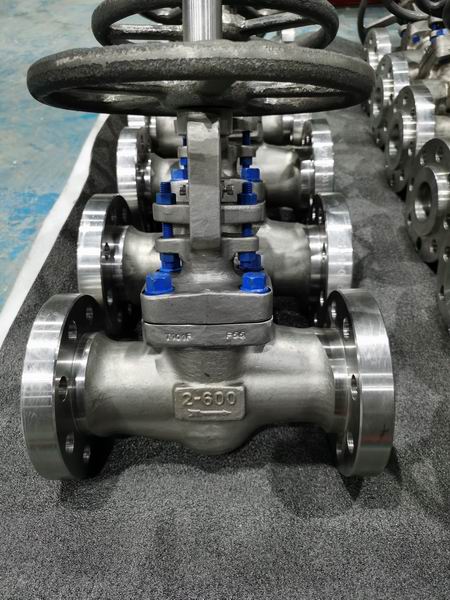

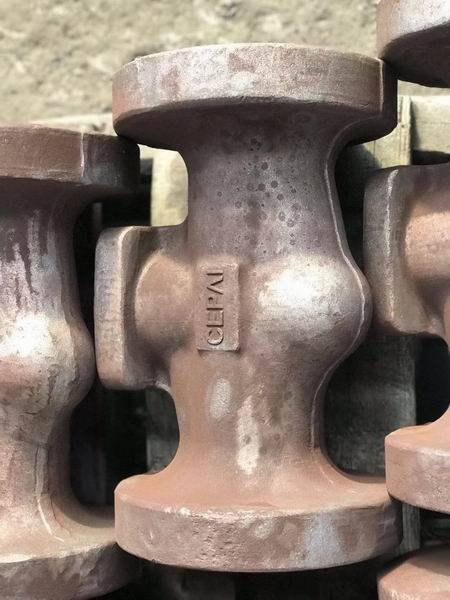

Forged steel globe valve
●Standard:
Design: API 602, BS 5352, ANSI B16.34
F To F: ASME B16.10
Connection: ASME B16.5, B16.25, B16.11, B1.20.1
Test: API 598, BS 6755
●Fordge Globe Valve Products Range:
Size: 1/2"～4"
Rating: Class 150～2500
Body Materials: Carbon Steel, Stainless Steel, Duplex Steel，Alloy
Connection: RF, RTJ, BW, SW, NPT
Operation: Handwheel, Gear, Pneumatic, Electrical
Tempertature: -196～650℃

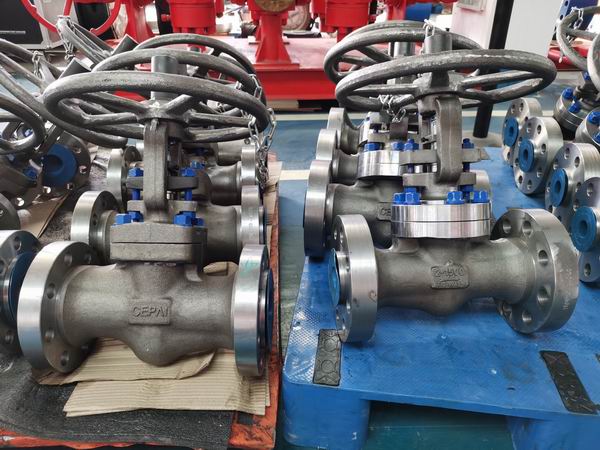

●Fordge Globe Valve Construction and Function
● Standard Port Design

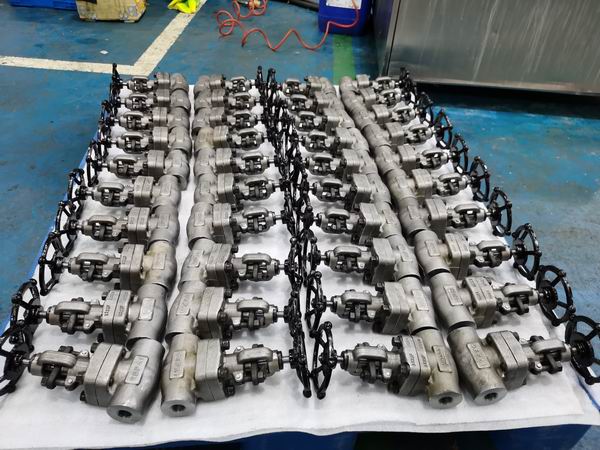

● Bolt Bonnet, Out Side Screw And Yoke
● Rising Stem & Rising Handwheel
● Integral Seat
For The Fordge Globe Valve produced by CEPAI, the Valve seat is generally integrated or cemented carbide is surmounted on the body before direct processing of the Valve seat.
● Body and Bonnet connection
For the Forged Globe Valve produced by CEPAI, the valve body and bonnet can be connected as bolt connection, welding connection, pressure self sealing connection and other different structures, etc.
● Swivel Plug
Fordge Globe Valve produced by CEPAI, the valve disc is designed as a Swivel structure. During the opening process, the sealing surface of the valve disc is washed by the medium to keep it clean, thereby continuously maintaining the sealing effect.
● Backseat Design
Fordge Globe Valve produced by CEPAI is designed with back sealing structure. Under normal circumstances, when the valve is in the full open position, the back sealing surface can provide a reliable sealing effect, so as to achieve the replacement of stem packing in line.
● Forged T-Head Stem
Fordge Globe Valve produced by CEPAI, the valve stem is made of an integral forging process, and the valve stem and disc are connected by a T-shaped structure. The strength of the stem joint surface is greater than the strength of the T-threaded part of the stem,which meet the requirement of strength test.
● Optional locking device
Fordge Globe Valve produced by CEPAI has designed a keyhole structure so that clients can lock the valve according to their needs to prevent misoperation.

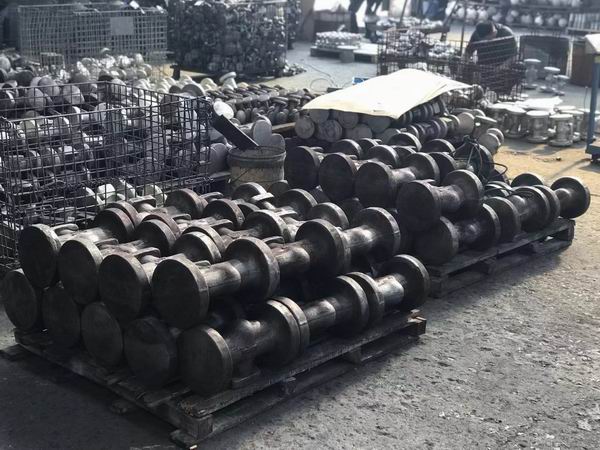

●Fordge Globe Valve Main Parts & Material List
Body/Bonnet A105N,LF2,F11,F22,F304,F316,F51,F53,F55,N08825,N06625;
Disc A105N,LF2,F11,F22,F304,F316,F51,F53,F55,N08825,N06625;
Stem F6,F304,F316,F51,F53,F55,N08825,N06625;
Packing Graphite,PTFE;
Gasket SS+Graphite,PTFE;
Bolt/Nut B7/2H,B7M/2HM,B8M/8B,L7/4,L7M/4M;
●Fordge Globe Valve
Fordge Globe Valve produced by CEPAI is mainly used to block or connect the medium in the pipeline. Choose Fordge Globe Valve of different materials can be used for water, steam, oil, liquefied gas, natural gas, gas, nitric acid,carbamide and other medium.
